Alpine X902D SKODA OCTAVIA 3

Alpine introduces the 2nd generation Alpine Style system for the Skoda Octavia 3 (Model Code 5E, 2012 and newer): get perfect system integration in your Skoda, paired with the latest features. Only Alpine offers the biggest screen size possible (9-inch), as well as extensive media options including Apple CarPlay and Android Auto compatibility, and cutting edge iGo Primo Nextgen navigation with TomTom maps. You also get high-end sound quality and sound tuning options with this great system.

Perfect vehicle integration with premium components.
Performance without compromise.

BLUETOOTH®

• Built-in BLUETOOTH® Module
• Wide Band Speech Technology
• HFP (Hands-Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Advanced BLUETOOTH® Technology
• Connection: SSP (Simple Secure Pairing) Supported
• Individual Profile Connection Hands Free Phone and Music Streaming
• Phone Book: Phone Book Synchronization
• Speed Dial: 4 Pre-set Memory (per phone)
• Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
• Device Name Display
• Auto Answer
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Redial Function
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• DTMF (Touch-Tone) Function
• Signal Strength Indicator
• Battery Level Indicator
• Menu Language Selection: 24 Languages
• Firmware Updatable

Screen

• Screen Size: 9 inch Capacitive WVGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4 x 50 W

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• Flac Decoding
• USB Video playback (AVI/MP4/MKV file with H.264 Video and MP3/AAC Audio)
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.008%
• Dynamic Range(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible navigation antenna included

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• High Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• High Pass Filter (Gain): -12 to 0 dB
• Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• Low Pass Filter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• Low Pass Filter (Gain): -12 to 0 dB
• Time Correction: 0.0 - 9.9ms (0.1ms step)
• Dual HD EQ Front + Rear
• Parametric Equalizer (Band 1): 20 - 100 Hz

General

• Power Output: 4 x 50 W High Power Amplifier
• Advanced Power IC
• Display: 9′′ Capacitive WVGA High Resolution Display
• White LED Backlighting System
• 50/50 Split Screen: Left / Right Position Changeable
• Control Type: Touch, Drag, Flick
• My Favourites Function
• Automatic Setting Change for 2 Users
• High Grade Audiophile Design
• 3 PreOuts (2 V, Front / Rear / Subwoofer) KTX-PRE1 Required (Sold separately)
• AUX-In: 1 A/V AUX Input 3.5mm (RCA)
• Steering Wheel Remote Control Function
• OEM Sub-display Function
• Remote Control Ready
• Navigation Guidance Mix
• Camera Connection & Built-in Controls for Multi-View Cameras
• Camera Guide Line Adjustment

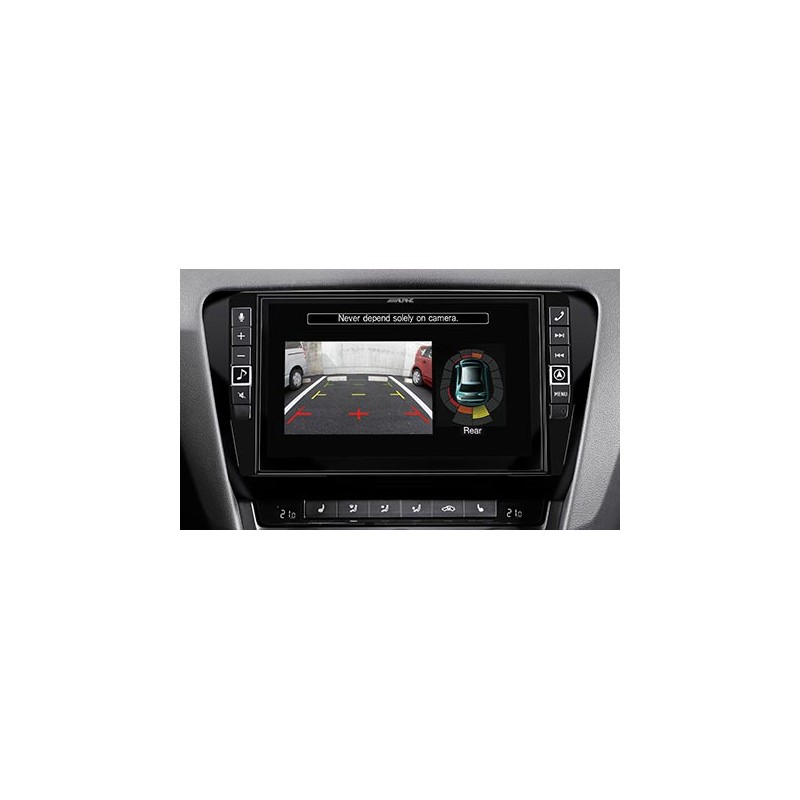

• Rear-view Camera Display Automatic Boot-up
• Simple Mode & Info Mode Display Selection
• Visual EQ
• Live Contrast Adjustment
• Menu Language: 24 Languages (for AV / Bluetooth), 29 Languages (Navigation Menu and Voice Guidance)
• Clock
• Auto Dimmer
• Anti-theft security code
• Firmware Updatable
• Original Skoda Octavia 3 hands-free Microphone Connection
• Power Antenna Lead
• Remote Turn-On
• HDMI Input (Alpine Special HDMI connector required)
